Product Name
SINGLE-CONDUCTOR HEATING CABLE FOR FLOOR HEATING
Product Properties
Brand: yiteng
Model: TXLp-1R
Certification: ISO CE CCC
Origin: hebei
Trading Information
Minimum order quantity: 1000meters
Price: FOB tianjin USD 0.1-5 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 10000meters per week
Delivery date: 10-15 days after payment
Conventional packaging: 100meters per roll
Product Description
Brief
TXLP-1R 220V single-conductor heating cable is mainly applicable to floor heating, soil heating, and snow melting etc
TXLP-1R 220V single-conductor heating cable assembly adopts buried joint, and SPLICE is marked in cold and hot joint
Performances

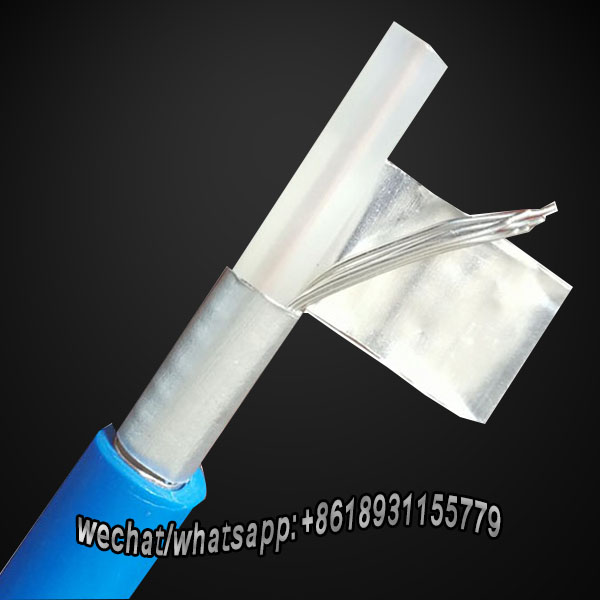

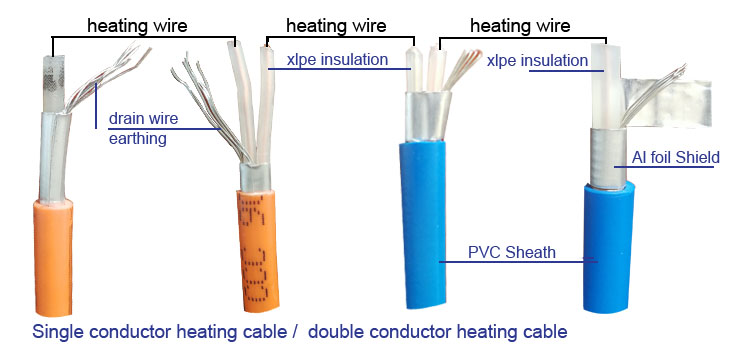

1. Structure
Outer jacket: blue PVC
Ground wire: tinned copper
Shield: foil+copper wire
Inner conductor:alloy resistance wire
Inner insulation XLPE
Joint type:buried joint
2. size
Outer diameter: 6.5mm
3.Electric parameter
Voltage supply:220V(customized)
Linear power 17/18.5/20w per m
Others
Length of cold cable2.25m
Max surface working temp:65℃
Min bending coefficient:5D
| TXLP-1R Series single-conductor heating cable(220V 18.5W/M) | |||||
| Power (W) | Cable Model | Voltage (V) | Standard Length(M) | Power per Meter(W/M) | Total resistance (Ω) |
| 3150 | TXLP/1/18.5 | 220 | 170.3 | 18.5 | 15.4 |
| 2200 | TXLP/1/18.5 | 220 | 118.9 | 18.5 | 22.0 |
| 1000 | TXLP/1/18.5 | 220 | 54.1 | 18.5 | 48.4 |
| 850 | TXLP/1/18.5 | 220 | 45.9 | 18.5 | 56.9 |
| 300 | TXLP/1/18.5 | 220 | 16.2 | 18.5 | 181.3 |
| Other 2800/2600/2400/1760/1600/1400/700/600/500/400 | Note: length=Power/18.5 | ||||
| TXLP-1R Series single-conductor heating cable(220V 17W/M) | |||||
| Power (W) | Cable Model | Voltage (V) | Standard Length(M) | Power per Meter(W/M) | Total resistance (Ω) |
| 3100 | TXLP/1/18.5 | 220 | 182.4 | 17 | 15.6 |
| 2200 | TXLP/1/18.5 | 220 | 129.4 | 17 | 22.0 |
| 1000 | TXLP/1/18.5 | 220 | 58.5 | 17 | 48.4 |
| 850 | TXLP/1/18.5 | 220 | 50.0 | 17 | 56.9 |
| 200 | TXLP/1/18.5 | 220 | 15.4 | 17 | 242.0 |
| Other 2600/1750/1400/1250/850/700/600/500/400/300/200 | Note: length=Power/17 | ||||
