product name

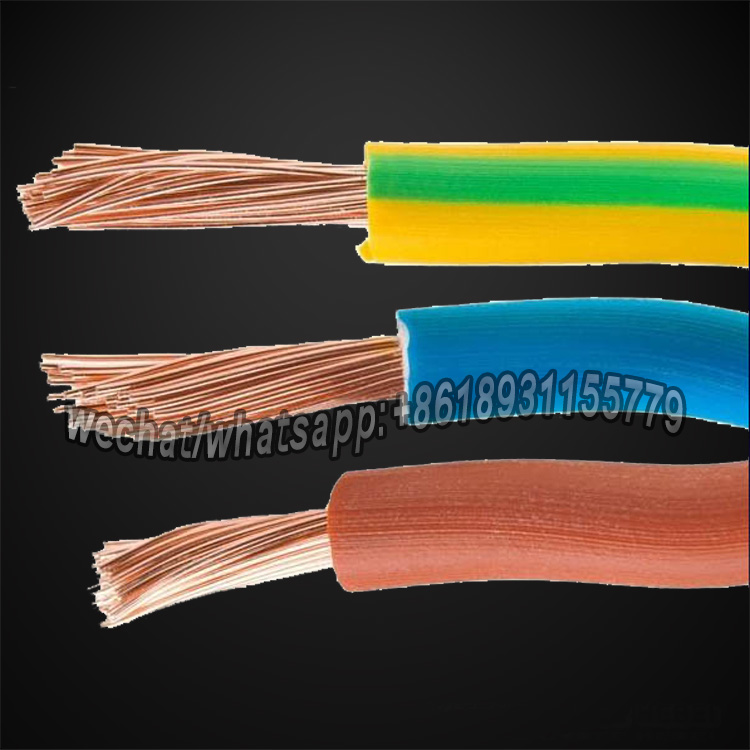

PVC insulated copper electric wire
house wiring wire home wiring pvc copper wire
Solid or stranded copper
Pvc insulation
0.75 mm2 (18# AWG)
1.5 mm2 (16# AWG)
2.5 mm2 (14# AWG)
product properties
Brand: Yiteng cable
Model: BV RV RVS VV
BLV RLV RVS VLV
Certification: CCC CE ISO9001 ISO14001
Origin: hebei china
Trading Information
Minimum order quantity: 10000 meters
Price: 0.1-10 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 100000 meters per week
Delivery date: 15-25 days after initial payment
Conventional packaging: Pp tape then in paper box then on parllet, Or as per clients requirement
product description
(The organization of product descriptions and product descriptions are also very important elements for website promotion. Generally speaking, the more detailed the textual description, the better.)
Description
PVC insulated wire belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places. It is widely used as connectors of drive, lighting, electric equipments, instrument and telecommunication equipments with rated voltage 450/750V or below. Part of the plastic wires are used at the equipment with AC rated voltage 300/300V or below.
Features
1. The rated voltage U0 / U 450v /750 V
2. Cable conductor long-term work for 90 ° C temperature of cable
3. The smallest bending radius is six times the diameter of cable
4. Cable shall not be in the sunlight long exposure to
5. The bottom line of cable core must good grounding
Application
Used in electronics, instruments and electronic equipment and automatic generation device with the power cord, line and signal transmission lines, concrete can be used for anti-theft alarm system, building talkback system, instrument and meter, and monitoring control such as the installation of surveillance.
Manufacturing Standards GB/T 12706-2008, IEC 60502-2
| Type | Name | Laying place and requirement | Long term working temperature |
| 227IEC01/05 BV BLV |
Copper conductor PVC insulated wires | Fixed laid indoors, conduits etc. | 70/90/105 |
| Aluminum Conductor PVC insulated wires | |||
| 227IEC07 BV-90 |
Heat resistant copper conductor PVC insulated wires at 90 | Mainly be laid at the places of high temperature environment and can be laid indoors, conduits. | 70/90/105 |
| BVR | Copper conductor PVC insulated flexible wire | Be for laying permanent place where flexible required | 70/90/105 |
| 227IEC10 BVV |
Copper conductor PVC insulated PVC sheathed round wires | Fixed laid, fit for the places with high mechanical protection and moisture place. Can be laid in the air or underground. | 70/90/105 |
| BLVV | Aluminum conductor PVC insulated PVC sheathed round wires | ||
| BVVB | Copper conductor PVC insulated PVC sheathed flat wires | ||
| BLVVB | Aluminum conductor PVC insulated sheathed flat wires | ||
| 227IEC02RV 227IEC06RV |
Copper conductor PVC insulated flexible connector | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required. | 70/90/105 |
| 227IECC42 RVB |
Copper conductor PVC insulated flat flexible connector | ||
| RVS | Copper conductor PVC insulated flexible twisting connector wire | ||
| 227IEC52 RVV 227IEC53 RVV |
Copper conductor PVC insulated PVC sheathed round flexible connector (light and common type) |
