product name

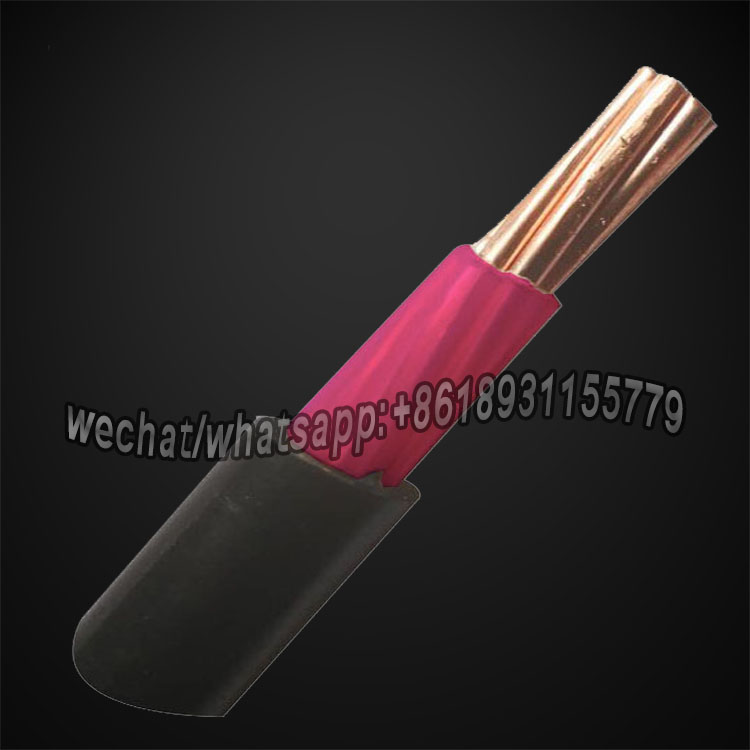

1core 25mm2 Pvdf Hmwpe Kynar Cable
product properties
Brand: Yireng
Model: 1C16mm2 halar
Certification: CCC CE ISO9001 ISO14001
Place of Origin: Hebei China
Trading Information
Minimum order quantity: 5000meters
Price: FOB tianjin USD 1-50 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 10000meters per week
Delivery date: 10-15 days after initial payment
Conventional packaging: In wooden steel drum ,As per client requirement
product description
Name: Chathodic Protection Cable
Other Name: CP cable kynar cable halar cable Pvdf hmwpe cable
Conductor material: Bare copper conforming to ASTM B-8, stranded copper class 2
Gauge: 2 – 8 China gauge Size: 6~240mm2
Insulation sheath/jacket: High molecular weight polyethylene (HMW / PE)- HMWPE sheath
Insulation wall: Natural Polyvinylidene Fluoride Kynar -PVDF fluoropolymer insualtion or as requirement
Operating Temperature: -40°C to 90°C
Meets Requirements: ASTM D 1248 I, Class A, Cat.4 Grade E5
Voltage: 600/1000v
corrosion proof
Single core
Standard: BS7889 & IEC60502
Minimum bending radius :
Diameter up to 25mm, 4 x OD;
Diameter over 25mm, 6 x OD
>>>>>>>>
sales@cablesyt.com>>>>>>>>
Application for Kynar Cable:
Working principal for cathodic protection cable
600/1000V High Temperature HMWPE/PVDF Cable Wire 10MM2 16MM2/ 25MM2/50MM2 such as anode lead wires, header cables, structure connections, test leads and more.
The product can also be used for submerged installations in water tanks, offshore structures and other similar applications.
The polyethylene insulation is durable, abrasion resistant and flexible but has temperature and chemical limitations.
This cable insulation color is usually black (standard). However, other custom colors are available depending the quantity purchased.
Specification for Kynar Cable china gauge :
>>>>>>>>sales@cablesyt.com>>>>>>>>
| Size (sqmm) |
Maximum Dia Over Conductor (mm) |
RT of Insulation (mm) |
Dia over Core (mm) |
RT of Sheath (mm) |
Nominal Overall Dia (mm) |
Weight (Kg/km) |
| 1×6 | 3.12 | 0.7 | 4.5 | 1.4 | 7.3 | 104 |
| 1×10 | 4.05 | 0.7 | 5.5 | 1.4 | 8.3 | 150 |
| 1×16 | 5.10 | 0.7 | 6.5 | 1.4 | 9.3 | 214 |
| 1×25 | 6.40 | 0.9 | 8.2 | 1.4 | 11.0 | 317 |
| 1×35 | 7.50 | 0.9 | 9.3 | 1.4 | 12.1 | 420 |
| 1×50 | 8.90 | 1.0 | 11.1 | 1.4 | 14.2 | 560 |
| 1×70 | 10.70 | 1.1 | 13.2 | 1.5 | 16.4 | 787 |
| 1×95 | 12.60 | 1.1 | 15.0 | 1.5 | 18.3 | 1050 |
| 1×120 | 14.98 | 1.2 | 17.6 | 1.6 | 21.2 | 1450 |
| 1×150 | 15.96 | 1.4 | 19.0 | 1.7 | 22.8 | 1650 |
| 1×185 | 17.78 | 1.6 | 21.3 | 1.7 | 25.1 | 2030 |
| 1×240 | 20.52 | 1.7 | 24.3 | 1.9 | 28.4 | 2660 |
contrast American gauge
| Conductor | Nominals (In.) | |||||||
| AWG | Strand | Dia | Cir Mils | KYNAR | HMWPE | Dia | Wgt/MFT | DC Ohms |
| 8 (8.37sqmm) | 7 | 0.146 | 16,533 | 0.020 | 0.065 | 0.316 | 81 | 0.645 |
| 6(13.30sqmm) | 7 | 0.184 | 26,218 | 0.020 | 0.065 | 0.354 | 116 | 0.407 |
| 4(21.15sqmm) | 7 | 0.232 | 41,718 | 0.020 | 0.065 | 0.402 | 170 | 0.256 |
| 2(33.62sqmm) | 7 | 0.292 | 66,407 | 0.020 | 0.065 | 0.462 | 254 | 0.160 |

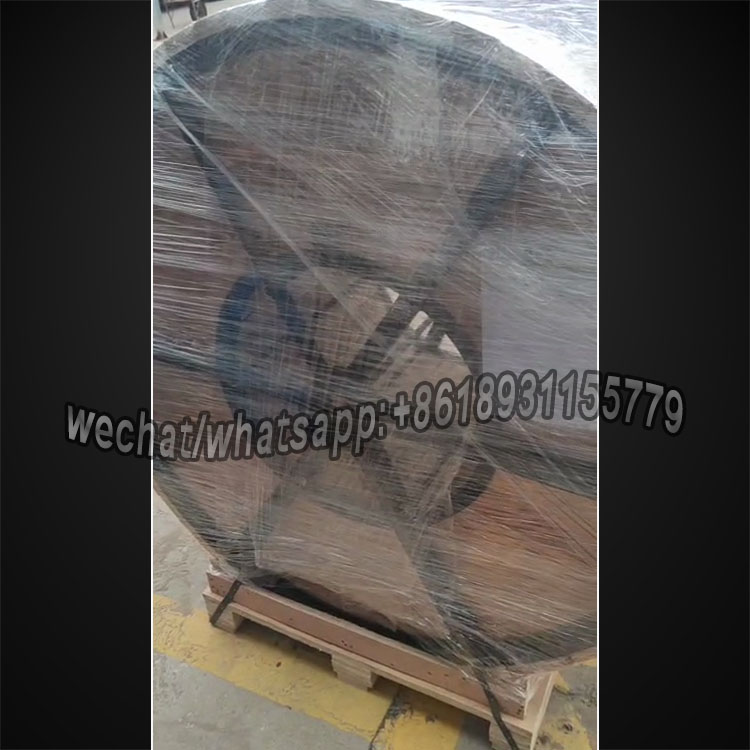

Packing details
