product name

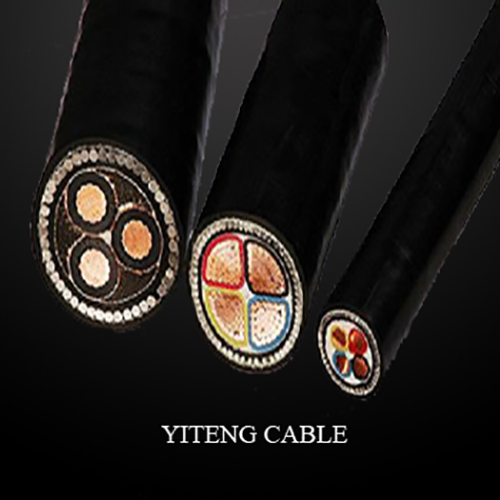

0.6/1KV Copper XLPE Power Cable with Steel Wire Armour
3C50mm2
4C120mm2
4C185mm2
product properties
Brand: yiteng brand
Model: YJV32
Certification: ISO9001 ISO14001 CCC CE
Origin: Hebie China
Trading Information
Minimum order quantity: 1000meters
Price: FOB tianjin USD 0.5-100 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 10000 meters per week
Delivery date: 15-25 days after payment
Conventional packaging: In wooden drum
product description
Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. permissible continuous operating temperature of conductor: 90 °C
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250 °C
The ambient temperature under installation should not be lower than: 0 °C
The bending radius of cable is recommended as following:
For single core cable: not less than 15 times of the diameter of cable
For multi-core cable: not less than 12 times of the diameter of cable
When the armoured single core cable used for Alternative Current(AC) system, the armour material should be non-magnetic.
Description
| Type | Description | No. of cores | Nominal cross section of conductor |
| YJV32 | Copper conductor/XLPE insulation/Steel Wire Armoured/PVC outer sheath Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| YJV33 | Copper conductor/XLPE insulation/Steel Wire Armoured/PE outer sheath Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| ZA-YJV32 ZB-YJV32 ZC-YJV32 | Copper conductor/XLPE insulation/Steel Wire Armoured flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| WDZA-YJY33 WDZB-YJY33 WDZC-YJY33 | Copper conductor/XLPE insulation/Steel Wire Armoured Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| NH-YJV32 | Copper conductor/XLPE insulation/Steel Wire Armoured fire-resistant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid in high fall area, able to bear external mechanical force, and certain pulling force.
Manufacturing Standards
GB/T 12706-2008, IEC 60502-1
